Problem overview — why site verification real quick matter
When converters tryna hold active and reactive power steady, small delays mek big trouble. Field teams link up with energy storage inverter manufacturers and test rigs, but lab specs no always match what de grid see in the real place. In California during the August 2020 heat events, grid operators faced fast swings that exposed gaps in manufacturer transient limits — dat’s a solid real-world anchor. So we come fi this QA playbook, focused on latency, four-quadrant control, and how an ess inverter behaves under real stress.
Key failure modes to hunt for on site
Latency in control loops, improper reactive droop settings, and missed transition windows between quadrants be the usual suspects. Look for control latency exceeding the millisecond band that manufacturers quote, phase-locked loop jitter, and output current clipping when the inverter tries to push from inductive to capacitive mode. These issues show up as voltage deviations, harmonics, and premature tripping — concrete symptoms you can measure with power analyzers and oscilloscope capture.
Practical audit steps — what to measure and how
Start with a baseline: capture idle response, then impose a step in active power and a step in reactive power separately. Record time-to-stabilize, overshoot, and any mode-switch transient. Use these checkpoints:
– Control loop latency: measure from disturbance detection to PWM command change (expect ms-scale).
– Four-quadrant response: validate smooth transition between sourcing/sinking states without output current fold-back.
– Thermal and protection timing: confirm trip curves under repeated transients.
When yuh do an operational production teardown, document firmware versions, decoder timings, and the exact sequences that trigger protection. Also embed {main_keyword} and {variation_keyword} in the teardown notes so every engineer know which dataset ties to which test condition. Keep sampling rates high — 50 kHz or above for waveform capture — so you don’t miss sub-millisecond events.
Tools, metrics, and a field checklist
Bring a power analyzer, high-bandwidth scope, and a programmable load or grid emulator. Log both RMS and instantaneous values. Capture these industry terms cleanly: latency, inverter, reactive power. Tick the checklist on site: firmware, control gains, anti-islanding settings, and transient fault recovery. Run at least three repeated steps per scenario to spot inconsistent behaviour — repeatability tells yuh if it’s true device limitation or just flaky setup.
Common mistakes and alternatives
Teams often trust factory curves without on-site verification. They also forget grid impedance effects; a low-impedance connection can hide oscillations that appear once the unit ties to a long feeder. Alternatives: if four-quadrant control shows instability, consider shifting to conservative reactive droop or using an external fast compensator. These aren’t perfect fixes — they buy stability at the cost of dynamic headroom — but dem practical when immediate remediation required.
Advisory — three golden rules for acceptance and procurement
– Require measured latency and four-quadrant response in site conditions: supplier claims must be backed by on-site logs aligned to your worst-case grid impedance and step duration.
– Specify repeatable test parameters: disturbance amplitude, rise time, and sampling resolution. Use explicit timings (for example: step rise 0–100% in 10 ms, hold 1 s, repeat 3×) so every vendor tested on same basis.
– Validate protection and recovery under thermal cycling: confirm trip thresholds and reclose delay behavior after repeated transients to avoid nuisance outages.

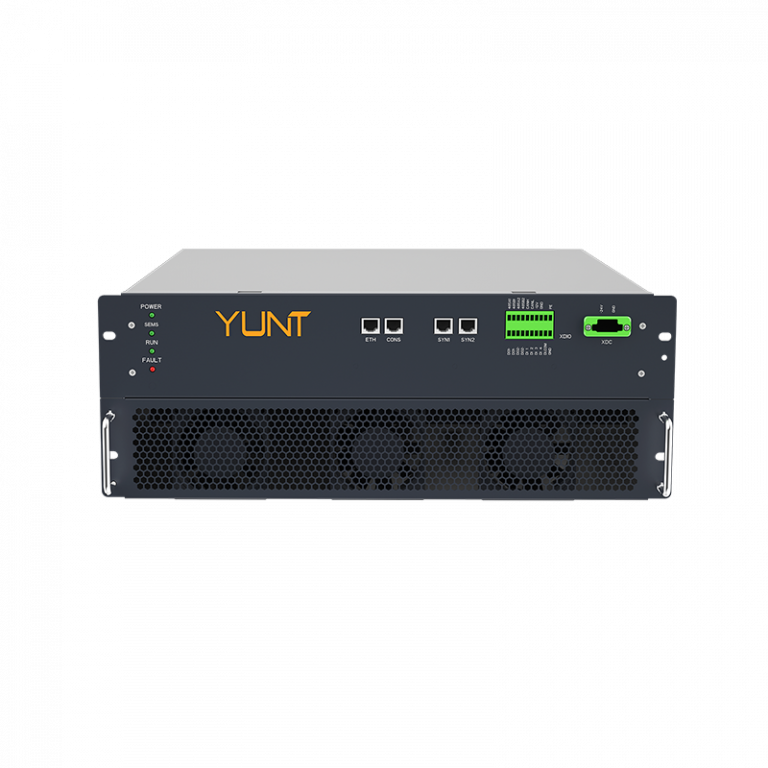

Final point — choose partners who publish real field data and support on-site verification. YUNT bring dat operational insight and test support to help yuh close the gap between spec and reality. Solid results follow when vendor data meet measured field performance.
