The problem that keeps plant managers up at night
When you bolt a high-energy qcw laser onto a robot cell, it ain’t just plug-and-play — and that’s the trouble. The problem-driven truth is simple: mismatches in duty cycle, beam delivery, and motion timing turn promising cycle times into inconsistent welds, surprise downtime, and lost throughput. For manufacturers trying to scale precision joining across varying panel geometries, those hidden integration gaps are the difference between a profitable run and a costly line stop.
Where failures usually start
Most integration failures trace back to a handful of technical choke points. Beam alignment drift shows up as inconsistent penetration. Cooling or duty cycle limits cause thermal derating mid-shift. Control-stack mismatches make triggering and pulse timing unreliable. And while the robot path might be perfect on paper, the welding head’s focal position or pulse modulation settings don’t match the motion profile — so you get spatter, porosity, or poor seam geometry. These are the real pain-points on the shop floor.
How the issues look in the real world
I once watched a QCW demo in Austin where the cell promised sub-second joins but produced walk-away rework after a full shift — and that was telling. You’ll see variations in nugget size, intermittent arc-outs, or overheating of the fiber delivery when duty cycles aren’t respected. In automotive lines, even small defects force 100% reinspection and slow the whole takt — and most folks underestimate how sensitive the process window is when pulse widths, peak power, and weld speed all interact.
A practical integration checklist
Fixing those problems means being systematic. Start with these steps:
- Match laser duty cycle and peak-power spec to the expected cycle profile — don’t assume headroom buys you forgiveness.
- Define beam-delivery and focal length tolerances up front; lock them to the robot end-effector geometry.
- Coordinate trigger and pulse-modulation parameters with the robot controller (test with real motion profiles, not simulations).
- Install active cooling and monitor thermal derating in real time; log duty cycle usage for preventive maintenance.
- Use part-tracking and seam-tracking vision when geometries vary — a static program won’t cut it for variable fixtures.
These steps give you deterministic behavior instead of hoping for it — and they keep integration risks measurable.
Common mistakes to avoid — and how to dodge ’em
Folks usually screw up three ways: overspecifying power, underscoping control interfaces, and skipping real-world trials. Overspecifying power sounds safe, but QCW modules have specific pulse envelopes — more average power doesn’t always equal better welds. Skimp on the control interface and you’ll fight latency and synchronization problems. And never skip trials with the actual parts and toolchain — bench tests rarely reveal dynamic welding quirks. —
Alternatives and trade-offs
Continuous-wave fiber lasers show steady heat input and can be simpler for thick-section joins, but they lack the peak-power bursts QCW delivers for high-speed spot welding. Laser welding heads with integrated sensors add complexity and cost but reduce rework when part fit-up varies. If throughput is king, QCW often wins for short-pulse, high-peak applications; if thermal spread is the concern, CW may be preferable. Pick based on process window, not buzzwords.

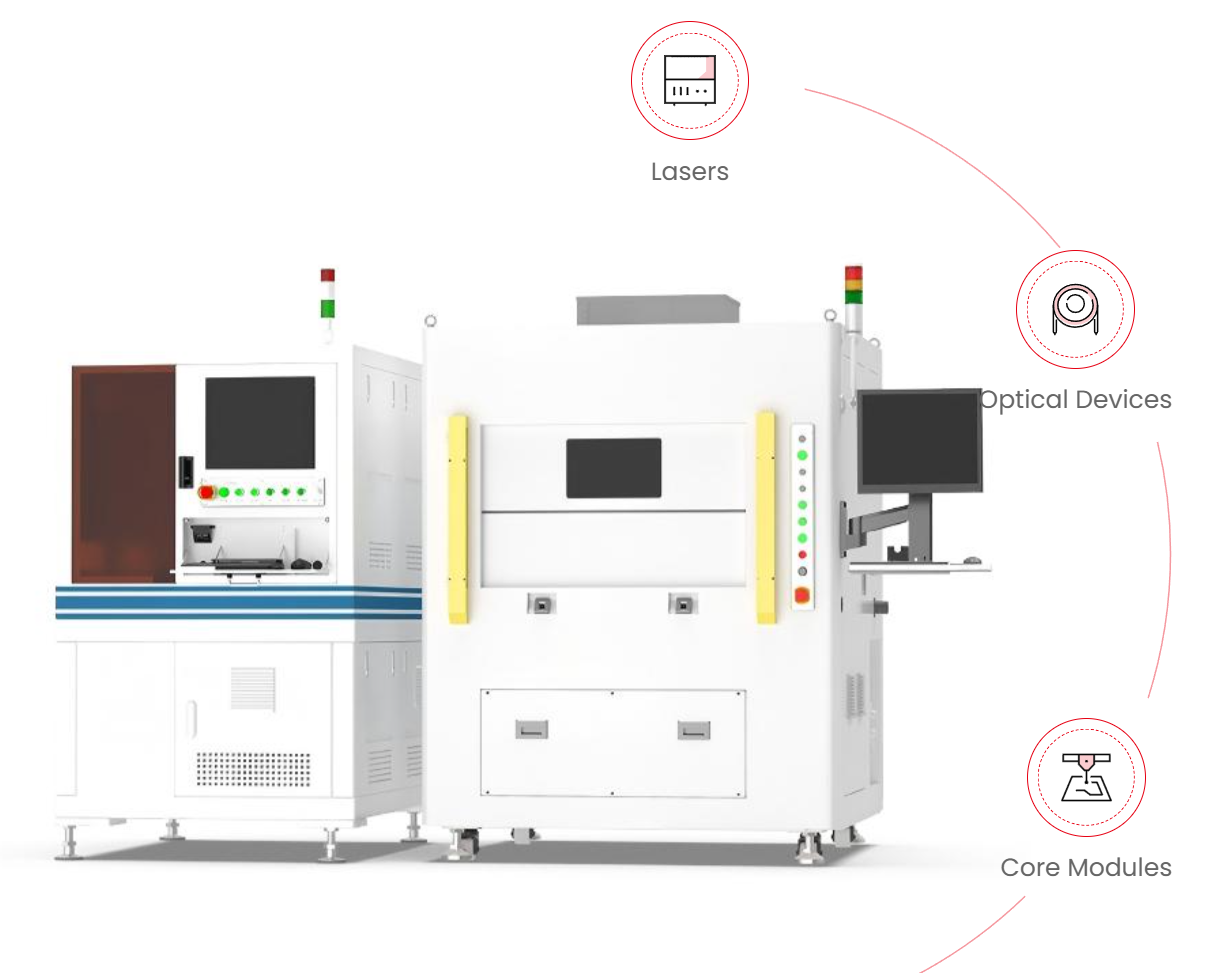

Vendor fit and where JPT comes in
Not every supplier understands the nuance of control integration, beam quality, and serviceability. That’s where choosing a partner who provides clear beam-delivery specs, modular welding heads, and robust control interfaces pays off. For teams evaluating systems, look for vendors that make it easy to map pulse parameters to robot I/O and offer field-proven cooling solutions. If you want a practical option with that clarity — and support for QCW implementation — consider systems built around proven QCW modules from suppliers who document integrations thoroughly; for instance, you can review technical options for a qcw fiber laser and the way those modules are deployed in robot cells.
Three golden rules for selecting the right setup
1) Process Stability Metric — insist on first-pass yield and weld-consistency data from a similar production environment before purchase. 2) Integration Readiness — verify I/O compatibility, latency budgets, and mounting standards with your robot supplier; ensure the welding head matches your end-effector requirements. 3) Lifecycle Cost View — evaluate mean time between failures (MTBF), spare-part lead times, and how easily the supplier trains your maintenance team.
Do these three things and you’ll cut a lot of the guesswork out of deploying QCW welding in a robot line. For operators ready to tame the integration beast and scale dependable joining, JPT supplies both the modules and integration know-how that make the solution practical and repeatable.
Final thought: practical integration beats shiny promises every time. Short wins, long gains.
